Compatible model: RX-7

• Compatible model: FD3S (for GReddy air funnel)
• Year: 91.12-02.08
• CODE:12040203

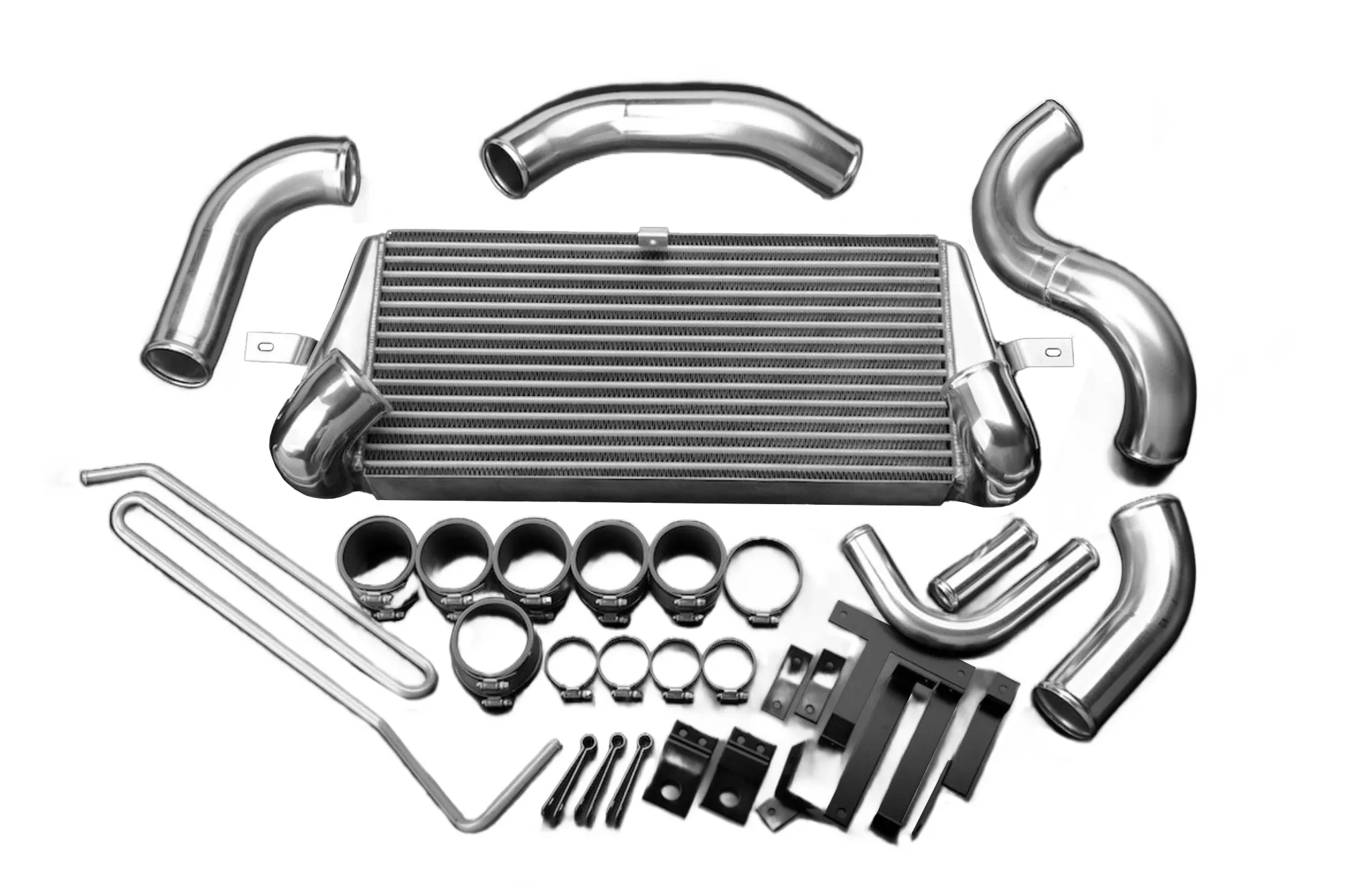

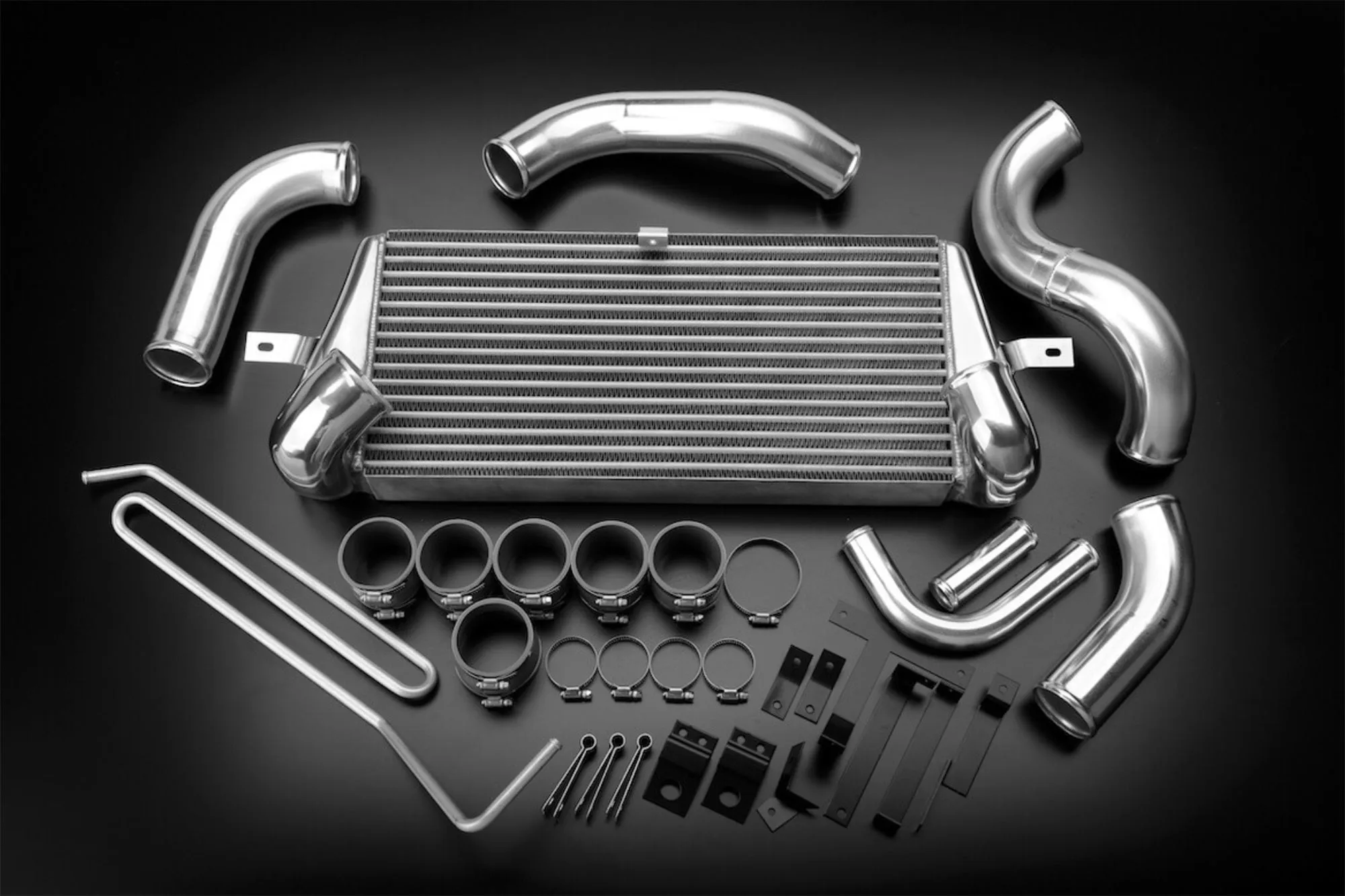

GReddy intercooler kit for FD3S

Sports turbine ~ Full tune class recommended Intercooler that demonstrates high cooling efficiency

Product features

• Emphasizes cooling efficiency, maximizes charging efficiency, and supports high power and high boost.
• The SPEC-R HG has the side tank and aluminum pipe buffed to a mirror finish, while the SPEC-R has a barrel finish. In addition, the core is CCP treated to improve corrosion resistance.
• The inner fin uses an offset inner fin. The SPEC-R, which aims for high power and high boost, uses an "offset inner fin."
• Optimized pressure loss and cooling effect to support high-level high boost tuning.

Specification

• Core type: TYPE42F
• Core size: H141/L625/W100
• Installation position: genuine replacement

Remarks

• For genuine turbine only.
• Requires GReddy compression tube (12040911), AIRINX SET (MZ-S001B) and battery change (38B20R).
• AT not confirmed.
• Cannot be installed simultaneously with GReddy radiator TWR
• * O/C kit can be installed at the same time
• *Reinforce processing required
• *Bumper processing required
